Provides tools to create and manage curve plots. More...

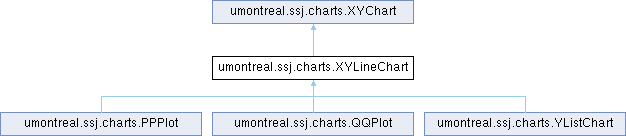

Inheritance diagram for umontreal.ssj.charts.XYLineChart:

Public Member Functions
	XYLineChart ()
	Initializes a new XYLineChart instance with an empty data set.
	XYLineChart (String title, String XLabel, String YLabel, double[][]... data)
	Initializes a new XYLineChart instance with sets of points data.
	XYLineChart (String title, String XLabel, String YLabel, double[][] data, int numPoints)
	Initializes a new XYLineChart instance with sets of points data.
	XYLineChart (String title, String XLabel, String YLabel, double[][] data, int x, int y)
	Initializes a new XYLineChart instance using subsets of data.
	XYLineChart (String title, String XLabel, String YLabel, DoubleArrayList... data)
	Initializes a new XYLineChart instance with data data.
	XYLineChart (String title, String XLabel, String YLabel, XYSeriesCollection data)
	Initializes a new XYLineChart instance with data data.
int	add (double[] x, double[] y, String name, String plotStyle)
	Adds a data series into the series collection.
int	add (double[] x, double[] y)
	Adds a data series into the series collection.
int	add (double[] x, double[] y, int numPoints)
	Adds a data series into the series collection.
int	add (double[][] data)
	Adds the new collection of data series data into the series collection.
int	add (double[][] data, int numPoints)
	Adds the new collection of data series data into the series collection.
XYListSeriesCollection	getSeriesCollection ()
	Returns the chart’s dataset.
void	setSeriesCollection (XYListSeriesCollection dataset)
	Links a new dataset to the current chart.
void	setTicksSynchro (int s)
	Synchronizes \(X\)-axis ticks to the \(s\)-th series.
JFrame	view (int width, int height)
	Displays chart on the screen using Swing.
JFrame	viewBar (int width, int height)
	Displays bar chart on the screen using Swing.
Latex-specific method @{
String	toLatex (double width, double height)
	Exports the chart to a LaTeX source code using PGF/TikZ.
Public Member Functions inherited from umontreal.ssj.charts.XYChart
JFreeChart	getJFreeChart ()
	Returns the JFreeChart object associated with this chart.
Axis	getXAxis ()
	Returns the chart’s domain axis ( \(x\)-axis) object.
Axis	getYAxis ()
	Returns the chart’s range axis ( \(y\)-axis) object.
String	getTitle ()
	Gets the current chart title.
void	setTitle (String title)
	Sets a title to this chart.
void	setprobFlag (boolean flag)
	Must be set true when plotting probabilities, false otherwise.
void	setAutoRange ()
	The \(x\) and the \(y\) ranges of the chart are set automatically.
void	setAutoRange (boolean right, boolean top)
	The \(x\) and the \(y\) ranges of the chart are set automatically.
void	setAutoRange00 (boolean xZero, boolean yZero)
	The \(x\) and the \(y\) ranges of the chart are set automatically.
void	setManualRange (double[] range)
	Sets the \(x\) and \(y\) ranges of the chart using the format: range = [xmin, xmax, ymin, ymax].
void	setManualRange (double[] range, boolean right, boolean top)
	Sets the \(x\) and \(y\) ranges of the chart using the format: range = [xmin, xmax, ymin, ymax].
void	setManualRange00 (double[] range, boolean xZero, boolean yZero)
	Sets the \(x\) and \(y\) ranges of the chart using the format: range = [xmin, xmax, ymin, ymax].
double	getChartMargin ()
	Returns the chart margin, which is the fraction by which the chart is enlarged on its borders.
void	setChartMargin (double margin)
	Sets the chart margin to margin.
void	drawVerticalLine (double x, String name, double yfrac, boolean right)
	Draws a vertical line on the chart at \(x\)-coordinate x.
void	enableGrid (double xstep, double ystep)
	Puts a grid on the background.
void	disableGrid ()
	Disables the background grid.
void	toLatexFile (String fileName, double width, double height)
	Transforms the chart to LaTeX form and writes it in file fileName.
void	setLatexDocFlag (boolean flag)
	Flag to remove the `\documentclass` (and other) commands in the created LaTeX files.

Additional Inherited Members

Detailed Description

Provides tools to create and manage curve plots.

Each XYLineChart object is linked with a XYListSeriesCollection data set.

Definition at line 48 of file XYLineChart.java.

Constructor & Destructor Documentation

◆ XYLineChart() [1/6]

umontreal.ssj.charts.XYLineChart.XYLineChart ( )

Initializes a new XYLineChart instance with an empty data set.

Definition at line 80 of file XYLineChart.java.

◆ XYLineChart() [2/6]

umontreal.ssj.charts.XYLineChart.XYLineChart	(	String	title,
		String	XLabel,
		String	YLabel,
		double...	data[][] )

Initializes a new XYLineChart instance with sets of points data.

title is a title, XLabel is a short description of the

\(x\)-axis, and YLabel a short description of the \(y\)-axis. The input parameter data represents a set of plotting data.

For example, if one \(n\)-row matrix data1 is given as argument data, then the first row data1 \([0]\) represents the \(x\)-coordinate vector, and every other row data1 \([i], i=1,…, n-1\), represents a \(y\)-coordinate set for a curve. Therefore matrix data1 \([i][j]\), \(i=0,…, n-1\), corresponds to \(n-1\) curves, all with the same \(x\)-coordinates.

                 However, one may want to plot several curves with
                 different

\(x\)-coordinates. In that case, one should give the curves as matrices with two rows. For examples, if the argument data is made of three 2-row matrices data1, data2 and data3, then they represents three different curves, data* \([0]\) being the \(x\)-coordinates, and data* \([1]\) the \(y\)-coordinates of the curves.

Parameters

title	chart title.
XLabel	Label on \(x\)-axis.
YLabel	Label on \(y\)-axis.
data	series of point sets.

Definition at line 116 of file XYLineChart.java.

◆ XYLineChart() [3/6]

umontreal.ssj.charts.XYLineChart.XYLineChart	(	String	title,
		String	XLabel,
		String	YLabel,
		double	data[][],
		int	numPoints )

Initializes a new XYLineChart instance with sets of points data.

title is a title, XLabel is a short description of the

\(x\)-axis, and YLabel a short description of the \(y\)-axis. If data is a \(n\)-row matrix, then the first row data \([0]\) represents the \(x\)-coordinate vector, and every other row data \([i], i=1,…, n-1\), represents a \(y\)-coordinate set of points. Therefore matrix data \([i][ ]\), \(i=0,…, n-1\), corresponds to \(n-1\) curves, all with the same \(x\)-coordinates. However, only the first numPoints of data will be considered to plot each curve.

Parameters

title	chart title.
XLabel	Label on \(x\)-axis.
YLabel	Label on \(y\)-axis.
data	series of point sets.
numPoints	Number of points to plot

Definition at line 141 of file XYLineChart.java.

◆ XYLineChart() [4/6]

umontreal.ssj.charts.XYLineChart.XYLineChart	(	String	title,
		String	XLabel,
		String	YLabel,
		double	data[][],
		int	x,
		int	y )

Initializes a new XYLineChart instance using subsets of data.

data[x][.] will form the \(x\)-coordinates and data[y][.] will form the \(y\)-coordinates of the chart. title sets a title, XLabel is a short description of the \(x\)-axis, and YLabel is a short description of the \(y\)-axis. Warning: if the new

\(x\)-axis coordinates are not monotone increasing, then they will automatically be sorted in increasing order so the points will be reordered, but the original data is not changed.

Parameters

title	chart title.
XLabel	Label on \(x\)-axis.
YLabel	Label on \(y\)-axis.
data	series of point sets.
x	Index of data forming the \(x\)-coordinates
y	Index of data forming the \(y\)-coordinates

Definition at line 164 of file XYLineChart.java.

◆ XYLineChart() [5/6]

umontreal.ssj.charts.XYLineChart.XYLineChart	(	String	title,
		String	XLabel,
		String	YLabel,
		DoubleArrayList...	data )

Initializes a new XYLineChart instance with data data.

The input parameter data represents a set of plotting data. A DoubleArrayList from the Colt library is used to store the data. The description is similar to the constructor YListChart with double[]... data.

Parameters

title	chart title.
XLabel	Label on \(x\)-axis.
YLabel	Label on \(y\)-axis.
data	series of point sets.

Definition at line 187 of file XYLineChart.java.

◆ XYLineChart() [6/6]

umontreal.ssj.charts.XYLineChart.XYLineChart	(	String	title,
		String	XLabel,
		String	YLabel,
		XYSeriesCollection	data )

Initializes a new XYLineChart instance with data data.

The input parameter data represents a set of plotting data.

org.jfree.data.xy.XYSeriesCollection is a JFreeChart container class to store \(XY\) plots.

Parameters

title	chart title.
XLabel	Label on \(x\)-axis.
YLabel	Label on \(y\)-axis.
data	series collection.

Definition at line 204 of file XYLineChart.java.

Member Function Documentation

◆ add() [1/5]

int umontreal.ssj.charts.XYLineChart.add	(	double[]	x,
		double[]	y )

Adds a data series into the series collection.

Vector x represents the \(x\)-coordinates and vector y represents the

\(y\)-coordinates of the series.

Parameters

x	\(x_i\) coordinates.
y	\(y_i\) coordinates.

Returns: Integer that represent the new point set’s position in the JFreeChart XYSeriesCollection object.

Definition at line 240 of file XYLineChart.java.

◆ add() [2/5]

int umontreal.ssj.charts.XYLineChart.add	(	double[]	x,
		double[]	y,
		int	numPoints )

Adds a data series into the series collection.

Vector x represents the \(x\)-coordinates and vector y represents the

\(y\)-coordinates of the series. Only the first numPoints of x and y will be taken into account for the new series.

Parameters

x	\(x_i\) coordinates.
y	\(y_i\) coordinates.
numPoints	Number of points to add

Returns: Integer that represent the new point set’s position in the JFreeChart XYSeriesCollection object.

Definition at line 258 of file XYLineChart.java.

◆ add() [3/5]

int umontreal.ssj.charts.XYLineChart.add	(	double[]	x,
		double[]	y,
		String	name,
		String	plotStyle )

Adds a data series into the series collection.

Vector x represents the \(x\)-coordinates and vector y represents the

\(y\)-coordinates of the series. name and plotStyle are the name and the plot style associated to the series.

Parameters

x	\(x_i\) coordinates.
y	\(y_i\) coordinates.
name	Name of the series.
plotStyle	Plot style of the series.

Returns: Integer that represent the new point set’s position in the JFreeChart XYSeriesCollection object.

Definition at line 223 of file XYLineChart.java.

◆ add() [4/5]

int umontreal.ssj.charts.XYLineChart.add ( double data[][] )

Adds the new collection of data series data into the series collection.

If data is a \(n\)-row matrix, then the first row data \([0]\) represents the \(x\)-coordinate vector, and every other row data \([i], i=1,…, n-1\), represents a

\(y\)-coordinate set of points. Therefore matrix data \([i][ ]\), \(i=0,…, n-1\), corresponds to \(n-1\) curves, all with the same \(x\)-coordinates.

Parameters

data	series of point sets.

Definition at line 275 of file XYLineChart.java.

◆ add() [5/5]

int umontreal.ssj.charts.XYLineChart.add	(	double	data[][],
		int	numPoints )

Adds the new collection of data series data into the series collection.

If data is a \(n\)-row matrix, then the first row data \([0]\) represents the \(x\)-coordinate vector, and every other row data \([i], i=1,…, n-1\), represents a

\(y\)-coordinate set of points. Therefore matrix data \([i][ ]\), \(i=0,…, n-1\), corresponds to \(n-1\) curves, all with the same \(x\)-coordinates. However, only the first numPoints of data will be taken into account for the new series.

Parameters

data	series of point sets.
numPoints	Number of points to plot

Definition at line 295 of file XYLineChart.java.

◆ getSeriesCollection()

XYListSeriesCollection umontreal.ssj.charts.XYLineChart.getSeriesCollection ( )

Returns the chart’s dataset.

Returns: the chart’s dataset.

Definition at line 306 of file XYLineChart.java.

◆ setSeriesCollection()

void umontreal.ssj.charts.XYLineChart.setSeriesCollection ( XYListSeriesCollection dataset )

Links a new dataset to the current chart.

Parameters

dataset new dataset.

Definition at line 315 of file XYLineChart.java.

◆ setTicksSynchro()

void umontreal.ssj.charts.XYLineChart.setTicksSynchro ( int s )

Synchronizes \(X\)-axis ticks to the \(s\)-th series.

\(x\)-values.

Parameters

s	series used to define ticks.

Reimplemented from umontreal.ssj.charts.XYChart.

Definition at line 324 of file XYLineChart.java.

◆ toLatex()

String umontreal.ssj.charts.XYLineChart.toLatex	(	double	width,
		double	height )

Exports the chart to a LaTeX source code using PGF/TikZ.

This method constructs and returns a string that can be written to a LaTeX document to render the plot. width and height represents the width and the height of the produced chart. These dimensions do not take into account the axes and labels extra space. The width and the height of the chart are measured in centimeters.

Parameters

width	Chart’s width in centimeters.
height	Chart’s height in centimeters.

Returns: LaTeX source code.

Reimplemented from umontreal.ssj.charts.XYChart.

Definition at line 410 of file XYLineChart.java.

◆ view()

JFrame umontreal.ssj.charts.XYLineChart.view	(	int	width,
		int	height )

Displays chart on the screen using Swing.

This method creates an application containing a chart panel displaying the chart. The created frame is positioned on-screen, and displayed before it is returned. The width and the height of the chart are measured in pixels.

Parameters

width	frame width in pixels.
height	frame height in pixels.

Returns

frame containing the chart.

Reimplemented from umontreal.ssj.charts.XYChart.

Definition at line 346 of file XYLineChart.java.

◆ viewBar()

JFrame umontreal.ssj.charts.XYLineChart.viewBar	(	int	width,
		int	height )

Displays bar chart on the screen using Swing.

This method creates an application containing a bar chart panel displaying the chart. The created frame is positioned on-screen, and displayed before it is returned. The width and the height of the chart are measured in pixels.

Parameters

width	frame width in pixels.
height	frame height in pixels.

Returns

frame containing the bar chart.

Definition at line 374 of file XYLineChart.java.

The documentation for this class was generated from the following file:

src/main/java/umontreal/ssj/charts/XYLineChart.java

SSJ API Documentation Stochastic Simulation in Java

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ XYLineChart() [1/6]

◆ XYLineChart() [2/6]

◆ XYLineChart() [3/6]

◆ XYLineChart() [4/6]

◆ XYLineChart() [5/6]

◆ XYLineChart() [6/6]

Member Function Documentation

◆ add() [1/5]

◆ add() [2/5]

◆ add() [3/5]

◆ add() [4/5]

◆ add() [5/5]

◆ getSeriesCollection()

◆ setSeriesCollection()

◆ setTicksSynchro()

◆ toLatex()

◆ view()

◆ viewBar()
