This class provides tools to create charts from data in a simple way. More...

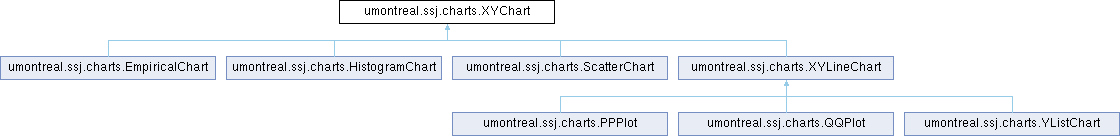

Inheritance diagram for umontreal.ssj.charts.XYChart:

Public Member Functions
JFreeChart	getJFreeChart ()
	Returns the JFreeChart object associated with this chart.
Axis	getXAxis ()
	Returns the chart’s domain axis ( \(x\)-axis) object.
Axis	getYAxis ()
	Returns the chart’s range axis ( \(y\)-axis) object.
abstract JFrame	view (int width, int height)
	Displays chart on the screen using Swing.
String	getTitle ()
	Gets the current chart title.
void	setTitle (String title)
	Sets a title to this chart.
void	setprobFlag (boolean flag)
	Must be set true when plotting probabilities, false otherwise.
void	setAutoRange ()
	The \(x\) and the \(y\) ranges of the chart are set automatically.
void	setAutoRange (boolean right, boolean top)
	The \(x\) and the \(y\) ranges of the chart are set automatically.
void	setAutoRange00 (boolean xZero, boolean yZero)
	The \(x\) and the \(y\) ranges of the chart are set automatically.
void	setManualRange (double[] range)
	Sets the \(x\) and \(y\) ranges of the chart using the format: range = [xmin, xmax, ymin, ymax].
void	setManualRange (double[] range, boolean right, boolean top)
	Sets the \(x\) and \(y\) ranges of the chart using the format: range = [xmin, xmax, ymin, ymax].
void	setManualRange00 (double[] range, boolean xZero, boolean yZero)
	Sets the \(x\) and \(y\) ranges of the chart using the format: range = [xmin, xmax, ymin, ymax].
double	getChartMargin ()
	Returns the chart margin, which is the fraction by which the chart is enlarged on its borders.
void	setChartMargin (double margin)
	Sets the chart margin to margin.
abstract void	setTicksSynchro (int s)
	Synchronizes \(x\)-axis ticks to the \(s\)-th series.
void	drawVerticalLine (double x, String name, double yfrac, boolean right)
	Draws a vertical line on the chart at \(x\)-coordinate x.

Latex-specific methods @{
void	enableGrid (double xstep, double ystep)
	Puts a grid on the background.
void	disableGrid ()
	Disables the background grid.
abstract String	toLatex (double width, double height)
	Exports the chart to a LaTeX source code using PGF/TikZ.
void	toLatexFile (String fileName, double width, double height)
	Transforms the chart to LaTeX form and writes it in file fileName.
void	setLatexDocFlag (boolean flag)
	Flag to remove the `\documentclass` (and other) commands in the created LaTeX files.

Detailed Description

This class provides tools to create charts from data in a simple way.

Its main feature is to produce TikZ/PGF (see WWW link http://sourceforge.net/projects/pgf/) compatible source code which can be included in LaTeX documents, but it can also produce charts in other formats. One can easily create a new chart, and customize its appearance using methods of this class, with the encapsulated umontreal.ssj.charts.SSJXYSeriesCollection object representing the data, and the two umontreal.ssj.charts.Axis objects representing the axes. All these classes depend on the JFreeChart API (see WWW link http://www.jfree.org/jfreechart/) which provides tools to build charts with Java, to draw them, and export them to files. However, only basic features are used here.

Moreover, XYChart provides methods to plot data using a MATLAB friendly syntax. None of these methods provides new features; they just propose a different syntax to create charts. Therefore some features are unavailable when using these methods only.

Definition at line 56 of file XYChart.java.

Member Function Documentation

◆ disableGrid()

void umontreal.ssj.charts.XYChart.disableGrid ( )

Disables the background grid.

Definition at line 399 of file XYChart.java.

◆ drawVerticalLine()

void umontreal.ssj.charts.XYChart.drawVerticalLine	(	double	x,
		String	name,
		double	yfrac,
		boolean	right )

Draws a vertical line on the chart at \(x\)-coordinate x.

name is written near the line at \(y\) position yfrac (a fraction of the \(y\)-size of the chart, 0 is the bottom, 1 is the top); if right is true, name is written on the right of the line, else on the left.

Parameters

x	\(x\)-coordinate of the line
name	description of the line
yfrac	\(y\)-position of name
right	\(x\)-position of name

Definition at line 359 of file XYChart.java.

◆ enableGrid()

void umontreal.ssj.charts.XYChart.enableGrid	(	double	xstep,
		double	ystep )

Puts a grid on the background.

It is important to note that the grid is always shifted in such a way that it contains the axes. Thus, the grid does not always have an intersection at the corner points; this occurs only if the corner points are multiples of the steps: xstep and ystep sets the step in each direction.

Parameters

xstep	sets the step in the x-direction.
ystep	sets the step in the y-direction.

Definition at line 390 of file XYChart.java.

◆ getChartMargin()

double umontreal.ssj.charts.XYChart.getChartMargin ( )

Returns the chart margin, which is the fraction by which the chart is enlarged on its borders.

The default value is \(0.02\).

Definition at line 325 of file XYChart.java.

◆ getJFreeChart()

JFreeChart umontreal.ssj.charts.XYChart.getJFreeChart ( )

Returns the JFreeChart object associated with this chart.

Returns: the associated JFreeChart object.

Definition at line 82 of file XYChart.java.

◆ getTitle()

String umontreal.ssj.charts.XYChart.getTitle ( )

Gets the current chart title.

Returns: Chart title.

Definition at line 114 of file XYChart.java.

◆ getXAxis()

Axis umontreal.ssj.charts.XYChart.getXAxis ( )

Returns the chart’s domain axis ( \(x\)-axis) object.

Returns: chart’s domain axis ( \(x\)-axis) object.

Definition at line 91 of file XYChart.java.

◆ getYAxis()

Axis umontreal.ssj.charts.XYChart.getYAxis ( )

Returns the chart’s range axis ( \(y\)-axis) object.

Returns: chart’s range axis ( \(y\)-axis) object.

Definition at line 100 of file XYChart.java.

◆ setAutoRange() [1/2]

void umontreal.ssj.charts.XYChart.setAutoRange ( )

The \(x\) and the \(y\) ranges of the chart are set automatically.

Definition at line 140 of file XYChart.java.

◆ setAutoRange() [2/2]

void umontreal.ssj.charts.XYChart.setAutoRange	(	boolean	right,
		boolean	top )

The \(x\) and the \(y\) ranges of the chart are set automatically.

If right is true, the vertical axis will be on the left of the points, otherwise on the right. If top is true, the horizontal axis will be under the points, otherwise above the points.

Parameters

right	true if the x-values on the right of axis.
top	true if the y-values on the top of axis.

Reimplemented in umontreal.ssj.charts.HistogramChart.

Definition at line 153 of file XYChart.java.

◆ setAutoRange00()

void umontreal.ssj.charts.XYChart.setAutoRange00	(	boolean	xZero,
		boolean	yZero )

The \(x\) and the \(y\) ranges of the chart are set automatically.

If xZero is true, the vertical axis will pass through the point \((0, y)\). If yZero is true, the horizontal axis will pass through the point \((x, 0)\).

Parameters

xZero	true if vertical axis passes through point 0
yZero	true if horizontal axis passes through point 0

Definition at line 251 of file XYChart.java.

◆ setChartMargin()

void umontreal.ssj.charts.XYChart.setChartMargin ( double margin )

Sets the chart margin to margin.

It is the fraction by which the chart is enlarged on its borders. Restriction: \(\mathtt{margin} \ge0\).

Parameters

margin margin percentage amount.

Definition at line 335 of file XYChart.java.

◆ setLatexDocFlag()

void umontreal.ssj.charts.XYChart.setLatexDocFlag ( boolean flag )

Flag to remove the \documentclass (and other) commands in the created LaTeX files.

If flag is true, then when charts are translated into LaTeX form, it will be as a self-contained file that can be directly compiled with LaTeX. However, in this form, the file cannot be included in another LaTeX file without causing compilation errors because of the multiple instructions \documentclass and \begin{document}. By setting flag to false, these instructions will be removed from the LaTeX chart files, which can then be included in a master LaTeX file. By default, the flag is true.

Definition at line 450 of file XYChart.java.

◆ setManualRange() [1/2]

void umontreal.ssj.charts.XYChart.setManualRange ( double[] range )

Sets the \(x\) and \(y\) ranges of the chart using the format: range = [xmin, xmax, ymin, ymax].

Parameters

range new axis ranges.

Definition at line 261 of file XYChart.java.

◆ setManualRange() [2/2]

void umontreal.ssj.charts.XYChart.setManualRange	(	double[]	range,
		boolean	right,
		boolean	top )

Sets the \(x\) and \(y\) ranges of the chart using the format: range = [xmin, xmax, ymin, ymax].

If right is true, the vertical axis will be on the left of the points, otherwise on the right. If top is true, the horizontal axis will be under the points, otherwise above the points.

Parameters

range	new axis ranges.
right	true if the x-values on the right.
top	true if the y-values on the top.

Definition at line 275 of file XYChart.java.

◆ setManualRange00()

void umontreal.ssj.charts.XYChart.setManualRange00	(	double[]	range,
		boolean	xZero,
		boolean	yZero )

Sets the \(x\) and \(y\) ranges of the chart using the format: range = [xmin, xmax, ymin, ymax].

If xZero is true, the vertical axis will pass through the point \((0, y)\). If yZero is true, the horizontal axis will pass through the point \((x, 0)\).

Parameters

range	new axis ranges.
xZero	true if vertical axis passes through point 0
yZero	true if horizontal axis passes through point 0

Definition at line 317 of file XYChart.java.

◆ setprobFlag()

void umontreal.ssj.charts.XYChart.setprobFlag ( boolean flag )

Must be set true when plotting probabilities, false otherwise.

Parameters

flag	true for plotting probabilities

Definition at line 133 of file XYChart.java.

◆ setTicksSynchro()

abstract void umontreal.ssj.charts.XYChart.setTicksSynchro ( int s )

abstract

Synchronizes \(x\)-axis ticks to the \(s\)-th series.

\(x\)-values.

Parameters

s series.

Reimplemented in umontreal.ssj.charts.EmpiricalChart, umontreal.ssj.charts.HistogramChart, umontreal.ssj.charts.ScatterChart, and umontreal.ssj.charts.XYLineChart.

◆ setTitle()

void umontreal.ssj.charts.XYChart.setTitle ( String title )

Sets a title to this chart.

This title will appear on the chart displayed by method view.

Parameters

title chart title.

Definition at line 124 of file XYChart.java.

◆ toLatex()

abstract String umontreal.ssj.charts.XYChart.toLatex	(	double	width,
		double	height )

abstract

Exports the chart to a LaTeX source code using PGF/TikZ.

This method constructs and returns a string that can be written to a LaTeX document to render the plot. width and height represents the width and the height of the produced chart. These dimensions do not take into account the axes and labels extra space. The width and the height of the chart are measured in centimeters.

Parameters

width	Chart’s width in centimeters.
height	Chart’s height in centimeters.

Returns: LaTeX source code.

Reimplemented in umontreal.ssj.charts.EmpiricalChart, umontreal.ssj.charts.HistogramChart, umontreal.ssj.charts.ScatterChart, and umontreal.ssj.charts.XYLineChart.

◆ toLatexFile()

void umontreal.ssj.charts.XYChart.toLatexFile	(	String	fileName,
		double	width,
		double	height )

Transforms the chart to LaTeX form and writes it in file fileName.

The chart’s width and height (in centimeters) are width and height.

Definition at line 421 of file XYChart.java.

◆ view()

abstract JFrame umontreal.ssj.charts.XYChart.view	(	int	width,
		int	height )

abstract

Displays chart on the screen using Swing.

Reimplemented in umontreal.ssj.charts.EmpiricalChart, umontreal.ssj.charts.HistogramChart, umontreal.ssj.charts.ScatterChart, and umontreal.ssj.charts.XYLineChart.

The documentation for this class was generated from the following file:

src/main/java/umontreal/ssj/charts/XYChart.java
