This class extends Tally. More...

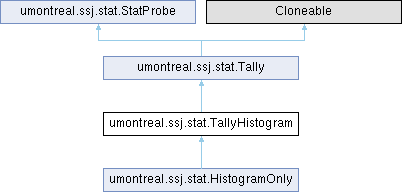

Inheritance diagram for umontreal.ssj.stat.TallyHistogram:

Public Member Functions
	TallyHistogram (double a, double b, int numBins)
	Constructs a TallyHistogram statistical probe.
	TallyHistogram (String name, double a, double b, int numBins)
	Constructs a new TallyHistogram statistical probe with name name.
void	init (double a, double b, int numBins)
	Initializes this object.
void	init ()
	Initializes all the counters and accumulators, including those of the Tally object.
void	fillFromArray (double[] obs, int numObs)
	Fills this object from the first numObs observations in array obs.
void	fillFromArray (double[] obs)
	Fills this object from the entire array obs.
void	fillFromTallyStore (TallyStore ts)
	Fills this object from the observations in a TallyStore object.
void	add (double x)
	Gives a new observation \(x\) to the statistical probe.
TallyHistogram	trimHistogram ()
	Remove empty bins in the tails (left and right), without changing the bin size.
TallyHistogram	addHistograms (TallyHistogram other)
	Merges this histogram with the other histogram, by adding the bin counts of the two histograms.
TallyHistogram	aggregateBins (int g)
	Merges bins by groups of size \(g\).
int[]	getCounters ()
	Returns the array of bin counters.
int	getNumBins ()
	Returns the number of bins \(s\).
double	getA ()
	Returns the left boundary \(a\) of the interval \([a,b]\).
double	getB ()
	Returns the right boundary \(b\) of the interval \([a,b]\).
double	getH ()
	Returns the width \(h\) of the bins.
double	getProportionInBoundaries ()
	Returns the proportion of the collected observations that lie within the boundaries.
TallyHistogram	clone ()
	Clones this object and the array that stores the counters.
String	toString ()
	Returns the bin counters as a String.
Public Member Functions inherited from umontreal.ssj.stat.Tally
	Tally ()
	Constructs a new unnamed Tally statistical probe.
	Tally (String name)
	Constructs a new Tally statistical probe with name name.
void	setName (String name)
	Set the name of this Tally to name.
void	add (double[] x, int number)
	Adds the first number observations from the array x to this probe.
int	numberObs ()
	Returns the number of observations given to this probe since its last initialization.
double	sum ()
	Returns the sum cumulated so far for this probe.
double	average ()
	Returns the average value of the observations since the last initialization.
double	variance ()
	Returns the sample variance of the observations since the last initialization.
double	standardDeviation ()
	Returns the sample standard deviation of the observations since the last initialization.
void	confidenceIntervalNormal (double level, double[] centerAndRadius)
	Computes a confidence interval on the mean.
void	confidenceIntervalStudent (double level, double[] centerAndRadius)
	Computes a confidence interval on the mean.
String	formatCINormal (double level, int d)
	Similar to confidenceIntervalNormal.
String	formatCINormal (double level)
	Equivalent to formatCINormal (level, 3).
String	formatCIStudent (double level, int d)
	Similar to confidenceIntervalStudent.
String	formatCIStudent (double level)
	Equivalent to formatCIStudent (level, 3).
void	confidenceIntervalVarianceChi2 (double level, double[] interval)
	Computes a confidence interval on the variance.
String	formatCIVarianceChi2 (double level, int d)
	Similar to confidenceIntervalVarianceChi2.
String	report ()
	Returns a formatted string that contains a report on this probe.
String	report (double level, int d)
	Returns a formatted string that contains a report on this probe with a confidence interval level level using \(d\) fractional decimal digits.
String	shortReportHeader ()
	Returns a string containing the name of the values returned in the report strings.
String	shortReport ()
	Formats and returns a short statistical report for this tally.
String	reportAndCIStudent (double level, int d)
	Returns a formatted string that contains a report on this probe (as in report ), followed by a confidence interval (as in formatCIStudent ), using \(d\) fractional decimal digits.
String	reportAndCIStudent (double level)
	Same as `reportAndCIStudent(level, 3)`.
double	getConfidenceLevel ()
	Returns the level of confidence for the intervals on the mean displayed in reports.
void	setConfidenceLevel (double level)
	Sets the level of confidence for the intervals on the mean displayed in reports.
void	setConfidenceIntervalNone ()
	Indicates that no confidence interval needs to be printed in reports formatted by report, and shortReport.
void	setConfidenceIntervalNormal ()
	Indicates that a confidence interval on the true mean, based on the central limit theorem, needs to be included in reports formatted by report and shortReport.
void	setConfidenceIntervalStudent ()
	Indicates that a confidence interval on the true mean, based on the normality assumption, needs to be included in reports formatted by report and shortReport.
void	setShowNumberObs (boolean showNumObs)
	Determines if the number of observations must be displayed in reports.
Public Member Functions inherited from umontreal.ssj.stat.StatProbe
String	getName ()
	Returns the name associated with this probe, or null if no name was specified upon construction.
double	min ()
	Returns the smallest value taken by the variable since the last initialization of this probe.
double	max ()
	Returns the largest value taken by the variable since the last initialization of this probe.
boolean	isBroadcasting ()
	Determines if this statistical probe is broadcasting observations to registered observers.
void	setBroadcasting (boolean b)
	Instructs the probe to turn its broadcasting ON or OFF.
boolean	isCollecting ()
	Determines if this statistical probe is collecting values.
void	setCollecting (boolean b)
	Turns ON or OFF the collection of statistical observations.
void	addObservationListener (ObservationListener l)
	Adds the observation listener l to the list of observers of this statistical probe.
void	removeObservationListener (ObservationListener l)
	Removes the observation listener l from the list of observers of this statistical probe.
void	clearObservationListeners ()
	Removes all observation listeners from the list of observers of this statistical probe.
void	notifyListeners (double x)
	Notifies the observation x to all registered observers if broadcasting is ON.

Additional Inherited Members
Static Public Member Functions inherited from umontreal.ssj.stat.StatProbe
static String	report (String globalName, StatProbe[] probes)
	Formats short reports for each statistical probe in the array probes while aligning the probes’ names.
static String	report (String globalName, Iterable<? extends StatProbe > probes)
	Equivalent to report(String,StatProbe[]), except that probes is an Iterable object instead of an array.

Detailed Description

This class extends Tally.

It does not store individual observations, but in addition to maintaining the counters as in Tally, it also constructs a histogram for the observations. The histogram is over a bounded interval \([a,b]\) and has a fixed number of bins of equal width, both specified by the user. The number of observations falling into each of the bins is kept in an array of counters. This array can be accessed directly by the user. Note that one should never add or remove observations directly on this array of bin counters because this would put the Tally counters in an inconsistent state. Additional variables count the number of observations falling outside the interval \([a,b]\).

Definition at line 44 of file TallyHistogram.java.

Constructor & Destructor Documentation

◆ TallyHistogram() [1/2]

umontreal.ssj.stat.TallyHistogram.TallyHistogram	(	double	a,
		double	b,
		int	numBins )

Constructs a TallyHistogram statistical probe.

Divide the interval

\([a,b]\) into \(s\) bins of equal width and initializes a counter to 0 for each bin. Whenever an observation falls into a bin, the bin counter is increased by 1.

Parameters

a	left boundary of interval
b	right boundary of interval
numBins	number of bins (of equal width)

Definition at line 63 of file TallyHistogram.java.

◆ TallyHistogram() [2/2]

umontreal.ssj.stat.TallyHistogram.TallyHistogram	(	String	name,
		double	a,
		double	b,
		int	numBins )

Constructs a new TallyHistogram statistical probe with name name.

Parameters

name	the name of the tally.
a	left boundary of interval
b	right boundary of interval
numBins	number of bins

Definition at line 76 of file TallyHistogram.java.

Member Function Documentation

◆ add()

void umontreal.ssj.stat.TallyHistogram.add ( double x )

Gives a new observation \(x\) to the statistical probe.

Updates are made as for the parent Tally object. Also increases by 1 the bin counter in which value \(x\) falls. Values that fall outside the interval \([a,b]\) are added to the extra bin counters.

Parameters

x	observation value

Reimplemented from umontreal.ssj.stat.Tally.

Reimplemented in umontreal.ssj.stat.HistogramOnly.

Definition at line 151 of file TallyHistogram.java.

◆ addHistograms()

TallyHistogram umontreal.ssj.stat.TallyHistogram.addHistograms ( TallyHistogram other )

Merges this histogram with the other histogram, by adding the bin counts of the two histograms.

Parameters

other

the histogram to add

         Returns the merged histogram.

Definition at line 201 of file TallyHistogram.java.

◆ aggregateBins()

TallyHistogram umontreal.ssj.stat.TallyHistogram.aggregateBins ( int g )

Merges bins by groups of size \(g\).

If there are \(m\) bins initially, the new number of bins will be \(\lceil m/g\rceil\). The last bin may regroup less than \(g\) original bins if \(m\) is not a multiple of \(g\). In this case the upper bound \(b\) is increased accordingly.

Definition at line 227 of file TallyHistogram.java.

◆ clone()

TallyHistogram umontreal.ssj.stat.TallyHistogram.clone ( )

Clones this object and the array that stores the counters.

Reimplemented from umontreal.ssj.stat.Tally.

Reimplemented in umontreal.ssj.stat.HistogramOnly.

Definition at line 318 of file TallyHistogram.java.

◆ fillFromArray() [1/2]

void umontreal.ssj.stat.TallyHistogram.fillFromArray ( double[] obs )

Fills this object from the entire array obs.

Definition at line 132 of file TallyHistogram.java.

◆ fillFromArray() [2/2]

void umontreal.ssj.stat.TallyHistogram.fillFromArray	(	double[]	obs,
		int	numObs )

Fills this object from the first numObs observations in array obs.

Definition at line 123 of file TallyHistogram.java.

◆ fillFromTallyStore()

void umontreal.ssj.stat.TallyHistogram.fillFromTallyStore ( TallyStore ts )

Fills this object from the observations in a TallyStore object.

Definition at line 139 of file TallyHistogram.java.

◆ getA()

double umontreal.ssj.stat.TallyHistogram.getA ( )

Returns the left boundary \(a\) of the interval \([a,b]\).

Returns: left boundary of interval

Definition at line 275 of file TallyHistogram.java.

◆ getB()

double umontreal.ssj.stat.TallyHistogram.getB ( )

Returns the right boundary \(b\) of the interval \([a,b]\).

Returns: right boundary of interval

Definition at line 284 of file TallyHistogram.java.

◆ getCounters()

int[] umontreal.ssj.stat.TallyHistogram.getCounters ( )

Returns the array of bin counters.

Each counter contains the number of observations that fell in its corresponding bin.

Returns: the array of bin counters

Definition at line 257 of file TallyHistogram.java.

◆ getH()

double umontreal.ssj.stat.TallyHistogram.getH ( )

Returns the width \(h\) of the bins.

Returns: the width of the bins

Definition at line 293 of file TallyHistogram.java.

◆ getNumBins()

int umontreal.ssj.stat.TallyHistogram.getNumBins ( )

Returns the number of bins \(s\).

Returns: the number of bins

Definition at line 266 of file TallyHistogram.java.

◆ getProportionInBoundaries()

double umontreal.ssj.stat.TallyHistogram.getProportionInBoundaries ( )

Returns the proportion of the collected observations that lie within the boundaries.

\([a,b]\) of the histogram; that is, the number that fell within \([a,b]\) divided by the total number that were collected.

Returns: the proportion of observations that lie in the histogram.

Definition at line 307 of file TallyHistogram.java.

◆ init() [1/2]

void umontreal.ssj.stat.TallyHistogram.init ( )

Initializes all the counters and accumulators, including those of the Tally object.

Reimplemented from umontreal.ssj.stat.Tally.

Reimplemented in umontreal.ssj.stat.HistogramOnly.

Definition at line 113 of file TallyHistogram.java.

◆ init() [2/2]

void umontreal.ssj.stat.TallyHistogram.init	(	double	a,
		double	b,
		int	numBins )

Initializes this object.

Divide the interval \([a,b]\) into

\(s\) bins of equal width and initializes all counters to 0.

Parameters

numBins	number of bins
a	left boundary of interval
b	right boundary of interval

Definition at line 89 of file TallyHistogram.java.

◆ toString()

String umontreal.ssj.stat.TallyHistogram.toString ( )

Returns the bin counters as a String.

Reimplemented in umontreal.ssj.stat.HistogramOnly.

Definition at line 335 of file TallyHistogram.java.

◆ trimHistogram()

TallyHistogram umontreal.ssj.stat.TallyHistogram.trimHistogram ( )

Remove empty bins in the tails (left and right), without changing the bin size.

This gives a new TallyHistogram which may have fewer bins.

Definition at line 167 of file TallyHistogram.java.

The documentation for this class was generated from the following file:

src/main/java/umontreal/ssj/stat/TallyHistogram.java

SSJ API Documentation Stochastic Simulation in Java

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ TallyHistogram() [1/2]

◆ TallyHistogram() [2/2]

Member Function Documentation

◆ add()

◆ addHistograms()

◆ aggregateBins()

◆ clone()

◆ fillFromArray() [1/2]

◆ fillFromArray() [2/2]

◆ fillFromTallyStore()

◆ getA()

◆ getB()

◆ getCounters()

◆ getH()

◆ getNumBins()

◆ getProportionInBoundaries()

◆ init() [1/2]

◆ init() [2/2]

◆ toString()

◆ trimHistogram()
