MultinormalCholeskyGen Class Reference

Extends MultinormalGen for a multivariate normal distribution [98] , generated via a Cholesky decomposition of the covariance matrix. More...

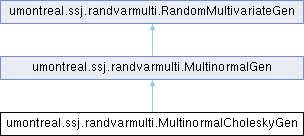

Inheritance diagram for MultinormalCholeskyGen:

Collaboration diagram for MultinormalCholeskyGen:

Public Member Functions
	MultinormalCholeskyGen (NormalGen gen1, double[] mu, double[][] sigma)
	Equivalent to MultinormalCholeskyGen(gen1, mu, new DenseDoubleMatrix2D(sigma)). More...
	MultinormalCholeskyGen (NormalGen gen1, double[] mu, DoubleMatrix2D sigma)
	Constructs a multinormal generator with mean vector mu and covariance matrix sigma. More...
DoubleMatrix2D	getCholeskyDecompSigma ()
	Returns the lower-triangular matrix \(\mathbf{A}\) in the Cholesky decomposition of \(\boldsymbol{\Sigma}\). More...
void	setSigma (DoubleMatrix2D sigma)
	Sets the covariance matrix \(\boldsymbol{\Sigma}\) of this multinormal generator to sigma (and recomputes \(\mathbf{A}\)). More...
void	nextPoint (double[] p)
	Generates a point from this multinormal distribution. More...
Public Member Functions inherited from MultinormalGen
	MultinormalGen (NormalGen gen1, int d)
	Constructs a generator with the standard multinormal distribution (with \(\boldsymbol{\mu}=\boldsymbol{0}\) and \(\boldsymbol{\Sigma}= \mathbf{I}\)) in \(d\) dimensions. More...
double []	getMu ()
	Returns the mean vector used by this generator. More...
double	getMu (int i)
	Returns the \(i\)-th component of the mean vector for this generator. More...
void	setMu (double[] mu)
	Sets the mean vector to mu. More...
void	setMu (int i, double mui)
	Sets the \(i\)-th component of the mean vector to mui. More...
DoubleMatrix2D	getSigma ()
	Returns the covariance matrix \(\boldsymbol{\Sigma}\) used by this generator. More...
void	nextPoint (double[] p)
	Generates a point from this multinormal distribution. More...
Public Member Functions inherited from RandomMultivariateGen
abstract void	nextPoint (double[] p)
	Generates a random point \(p\) using the the stream contained in this object.
void	nextArrayOfPoints (double[][] v, int start, int n)
	Generates \(n\) random points. More...
int	getDimension ()
	Returns the dimension of this multivariate generator (the dimension of the random points).
RandomStream	getStream ()
	Returns the umontreal.ssj.rng.RandomStream used by this object. More...
void	setStream (RandomStream stream)
	Sets the umontreal.ssj.rng.RandomStream used by this object to stream.

Static Public Member Functions
static void	nextPoint (NormalGen gen1, double[] mu, double[][] sigma, double[] p)
	Equivalent to nextPoint(gen1, mu, new DenseDoubleMatrix2D(sigma), p).
static void	nextPoint (NormalGen gen1, double[] mu, DoubleMatrix2D sigma, double[] p)
	Generates a \(d\)-dimensional vector from the multinormal distribution with mean vector mu and covariance matrix sigma, using the one-dimensional normal generator gen1 to generate the coordinates of \(\mathbf{Z}\), and using the Cholesky decomposition of \(\boldsymbol{\Sigma}\). More...

Additional Inherited Members
Protected Member Functions inherited from MultinormalGen
	MultinormalGen (NormalGen gen1, double[] mu, DoubleMatrix2D sigma)
	Constructs a multinormal generator with mean vector mu and covariance matrix sigma. More...
	MultinormalGen (NormalGen gen1, double[] mu, double[][] sigma)
	Equivalent to MultinormalGen(gen1, mu, new DenseDoubleMatrix2D (sigma)).
Protected Attributes inherited from MultinormalGen
double []	mu
DoubleMatrix2D	sigma
DoubleMatrix2D	sqrtSigma
double []	temp
Protected Attributes inherited from RandomMultivariateGen
int	dimension
RandomStream	stream
RandomVariateGen	gen1
Static Protected Attributes inherited from MultinormalGen
static final double	MYINF = 37.54

Detailed Description

Extends MultinormalGen for a multivariate normal distribution [98] , generated via a Cholesky decomposition of the covariance matrix.

The covariance matrix \(\boldsymbol{\Sigma}\) is decomposed (by the constructor) as \(\boldsymbol{\Sigma}= \mathbf{A}\mathbf{A}^{\!\mathsf{t}}\) where \(\mathbf{A}\) is a lower-triangular matrix (this is the Cholesky decomposition), and \(\mathbf{X}\) is generated via

\[ \mathbf{X}= \boldsymbol{\mu}+ \mathbf{A}\mathbf{Z}, \]

where \(\mathbf{Z}\) is a \(d\)-dimensional vector of independent standard normal random variates, and \(\mathbf{A}^{\!\mathsf{t}}\) is the transpose of \(\mathbf{A}\). The covariance matrix \(\boldsymbol{\Sigma}\) must be positive-definite, otherwise the Cholesky decomposition will fail. The decomposition method uses the CholeskyDecomposition class in colt.

Constructor & Destructor Documentation

MultinormalCholeskyGen() [1/2]

MultinormalCholeskyGen	(	NormalGen	gen1,
		double []	mu,
		double	sigma[][]
	)

Equivalent to MultinormalCholeskyGen(gen1, mu, new DenseDoubleMatrix2D(sigma)).

Parameters

gen1	the one-dimensional generator
mu	the mean vector.
sigma	the covariance matrix.

Exceptions

NullPointerException	if any argument is null.
IllegalArgumentException	if the length of the mean vector is incompatible with the dimensions of the covariance matrix.

MultinormalCholeskyGen() [2/2]

MultinormalCholeskyGen	(	NormalGen	gen1,
		double []	mu,
		DoubleMatrix2D	sigma
	)

Constructs a multinormal generator with mean vector mu and covariance matrix sigma.

The mean vector must have the same length as the dimensions of the covariance matrix, which must be symmetric and positive-definite. If any of the above conditions is violated, an exception is thrown. The vector \(\mathbf{Z}\) is generated by calling \(d\) times the generator gen1, which must be a standard normal 1-dimensional generator.

Parameters

gen1	the one-dimensional generator
mu	the mean vector.
sigma	the covariance matrix.

Exceptions

NullPointerException	if any argument is null.
IllegalArgumentException	if the length of the mean vector is incompatible with the dimensions of the covariance matrix.

Member Function Documentation

getCholeskyDecompSigma()

DoubleMatrix2D getCholeskyDecompSigma

(

)

Returns the lower-triangular matrix \(\mathbf{A}\) in the Cholesky decomposition of \(\boldsymbol{\Sigma}\).

Returns

the Cholesky decomposition of the covariance matrix.

nextPoint() [1/2]

static void nextPoint ( NormalGen  gen1, double []  mu, DoubleMatrix2D  sigma, double []  p  )

static

Generates a \(d\)-dimensional vector from the multinormal distribution with mean vector mu and covariance matrix sigma, using the one-dimensional normal generator gen1 to generate the coordinates of \(\mathbf{Z}\), and using the Cholesky decomposition of \(\boldsymbol{\Sigma}\).

The resulting vector is put into p. Note that this static method will be very slow for large dimensions, since it computes the Cholesky decomposition at every call. It is therefore recommended to use a MultinormalCholeskyGen object instead, if the method is to be called more than once.

Parameters

p	the array to be filled with the generated point.

Exceptions

IllegalArgumentException	if the one-dimensional normal generator uses a normal distribution with \(\mu\) not equal to 0, or \(\sigma\) not equal to 1.
IllegalArgumentException	if the length of the mean vector is different from the dimensions of the covariance matrix, or if the covariance matrix is not symmetric and positive-definite.
NullPointerException	if any argument is null.

nextPoint() [2/2]

void nextPoint

(

double []

p

)

Generates a point from this multinormal distribution.

This is much faster than the static method as it computes the singular value decomposition matrix only once in the constructor.

Parameters

p	the array to be filled with the generated point

setSigma()

void setSigma

(

DoubleMatrix2D

sigma

)

Sets the covariance matrix \(\boldsymbol{\Sigma}\) of this multinormal generator to sigma (and recomputes \(\mathbf{A}\)).

Parameters

sigma

the new covariance matrix.

Exceptions

IllegalArgumentException

if sigma has incorrect dimensions.

---

The documentation for this class was generated from the following file:

• MultinormalCholeskyGen.java
