Class for the construction od digital nets. More...

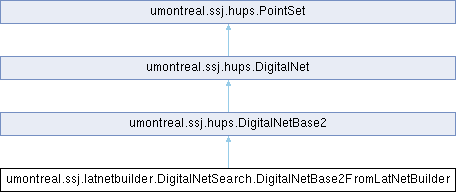

Inheritance diagram for DigitalNetSearch.DigitalNetBase2FromLatNetBuilder:
Collaboration diagram for DigitalNetSearch.DigitalNetBase2FromLatNetBuilder:
Public Member Functions | |
| DigitalNetBase2FromLatNetBuilder (int numRows, int numCols, int dim, int[] matrices) | |
 Public Member Functions inherited from DigitalNetBase2 | |
| void | printGeneratorMatrices (int s) |
| Prints the generator matrices as bit matrices in standard form for dimensions 1 to \(s\). More... | |
| void | printGeneratorMatricesTrans (int s) |
| Prints the generator matrices transposed in the form of integers for dimensions 1 to \(s\). More... | |
| double | getCoordinate (int i, int j) |
| double | getCoordinateNoGray (int i, int j) |
| PointSetIterator | iterator () |
Returns a DigitalNetBase2Iterator which enumerates the points using a Gray code. | |
| PointSetIterator | iteratorNoGray () |
| This iterator does not use the Gray code. More... | |
| String | toString () |
| void | clearRandomShift () |
| void | addRandomShift (int d1, int d2, RandomStream stream) |
| void | addRandomShift (RandomStream stream) |
| void | leftMatrixScramble (RandomStream stream) |
| void | iBinomialMatrixScramble (RandomStream stream) |
| void | stripedMatrixScramble (RandomStream stream) |
| void | rightMatrixScramble (RandomStream stream) |
| void | nestedUniformScramble (RandomStream stream, double[][] output) |
| Same as nestedUniformScramble(stream, output, 0) . | |
| void | nestedUniformScramble (RandomStream stream, double[][] output, int numBits) |
| Apply Owen's nested uniform scrambling. More... | |
| void | leftMatrixScrambleDiag (RandomStream stream) |
| void | leftMatrixScrambleFaurePermut (RandomStream stream, int sb) |
| void | leftMatrixScrambleFaurePermutDiag (RandomStream stream, int sb) |
| void | leftMatrixScrambleFaurePermutAll (RandomStream stream, int sb) |
| void | iBinomialMatrixScrambleFaurePermut (RandomStream stream, int sb) |
| void | iBinomialMatrixScrambleFaurePermutDiag (RandomStream stream, int sb) |
| void | iBinomialMatrixScrambleFaurePermutAll (RandomStream stream, int sb) |
| void | stripedMatrixScrambleFaurePermutAll (RandomStream stream, int sb) |
| Public Member Functions inherited from DigitalNet | |
| DigitalNet () | |
| Empty constructor. | |
| double | getCoordinate (int i, int j) |
| Returns \(u_{i',j}\), the coordinate \(j\) of point \(i'\), where \(i'\) is the Gray code for \(i\). More... | |
| PointSetIterator | iterator () |
| double | getCoordinateNoGray (int i, int j) |
| Returns \(u_{i,j}\), the coordinate \(j\) of point \(i\), the points being enumerated in the standard order (no Gray code). More... | |
| PointSetIterator | iteratorNoGray () |
| Returns an iterator that does not use the Gray code. More... | |
| void | addRandomShift (int d1, int d2, RandomStream stream) |
Generates a random digital shift for coordinates \(j\) from d1 to d2-1, using stream to generate the random numbers. More... | |
| void | addRandomShift (RandomStream stream) |
Same as addRandomShift(0, dim, stream), where dim is the dimension of the digital net. More... | |
| void | clearRandomShift () |
| Erases the current digital random shift, if any. | |
| String | toString () |
| Formats a string that contains information on this digital net. More... | |
| void | leftMatrixScramble (RandomStream stream) |
| Applies a linear scramble by multiplying each \(\mathbf{C}_j\) on the left by a \(w\times w\) nonsingular lower-triangular matrix. More... | |
| void | leftMatrixScrambleDiag (RandomStream stream) |
| Similar to leftMatrixScramble except that all the off-diagonal elements of the \(\mathbf{M}_j\) are 0. More... | |
| void | leftMatrixScrambleFaurePermut (RandomStream stream, int sb) |
| Similar to leftMatrixScramble except that the diagonal elements of each matrix \(\mathbf{M}_j\) are chosen from a restricted set of the best integers as calculated by Faure [59] . More... | |
| void | leftMatrixScrambleFaurePermutDiag (RandomStream stream, int sb) |
| Similar to leftMatrixScrambleFaurePermut except that all off-diagonal elements are 0. More... | |
| void | leftMatrixScrambleFaurePermutAll (RandomStream stream, int sb) |
| Similar to leftMatrixScrambleFaurePermut except that the elements under the diagonal are also chosen from the same restricted set as the diagonal elements. More... | |
| void | iBinomialMatrixScramble (RandomStream stream) |
| Applies the \(i\)-binomial matrix scramble proposed by Tezuka. More... | |
| void | iBinomialMatrixScrambleFaurePermut (RandomStream stream, int sb) |
| Similar to iBinomialMatrixScramble except that the diagonal elements of each matrix \(\mathbf{M}_j\) are chosen as in leftMatrixScrambleFaurePermut. More... | |
| void | iBinomialMatrixScrambleFaurePermutDiag (RandomStream stream, int sb) |
| Similar to iBinomialMatrixScrambleFaurePermut except that all the off-diagonal elements are 0. More... | |
| void | iBinomialMatrixScrambleFaurePermutAll (RandomStream stream, int sb) |
| Similar to iBinomialMatrixScrambleFaurePermut except that the elements under the diagonal are also chosen from the same restricted set as the diagonal elements. More... | |
| void | stripedMatrixScramble (RandomStream stream) |
| Applies the striped matrix scramble proposed by Owen. More... | |
| void | stripedMatrixScrambleFaurePermutAll (RandomStream stream, int sb) |
| Similar to stripedMatrixScramble except that the elements on and under the diagonal of each matrix \(\mathbf{M}_j\) are chosen as in leftMatrixScrambleFaurePermut. More... | |
| void | rightMatrixScramble (RandomStream stream) |
| Applies a linear scramble by multiplying each \(\mathbf{C}_j\) on the right by a single \(k\times k\) nonsingular upper-triangular matrix \(\mathbf{M}\), as suggested by Faure and Tezuka. More... | |
| void | unrandomize () |
| Restores the original generator matrices and removes the random shift. | |
| void | resetGeneratorMatrices () |
| Restores the original generator matrices. More... | |
| void | eraseOriginalGeneratorMatrices () |
| Erases the original generator matrices and replaces them by the current ones. More... | |
| void | printGeneratorMatrices (int s) |
| Prints the generator matrices in standard form for dimensions 1 to \(s\). | |
| Public Member Functions inherited from PointSet | |
| int | getDimension () |
| Returns the dimension (number of available coordinates) of the points. More... | |
| int | getNumPoints () |
| Returns the number of points. More... | |
| abstract double | getCoordinate (int i, int j) |
| Returns \(u_{i,j}\), the coordinate \(j\) of the point \(i\). More... | |
| PointSetIterator | iterator () |
| Constructs and returns a point set iterator. More... | |
| void | randomize (PointSetRandomization rand) |
Randomizes this point set using the given rand. More... | |
| void | addRandomShift (int d1, int d2, RandomStream stream) |
By default, this method generates a random shift in the protected double[] array shift, to be used eventually for a random shift modulo 1. More... | |
| void | addRandomShift (RandomStream stream) |
Same as addRandomShift(0, dim, stream), where dim is the dimension of the point set. More... | |
| void | addRandomShift (int d1, int d2) |
Refreshes the random shift (generates new uniform values for the random shift coordinates) for coordinates d1 to d2-1, using the saved shiftStream. | |
| void | addRandomShift () |
Same as addRandomShift(0, dim), where dim is the dimension of the point set. | |
| void | clearRandomShift () |
| Erases the current random shift, if any. | |
| String | toString () |
| Formats a string that contains information about the point set. More... | |
| String | formatPoints () |
| Same as invoking formatPoints(n, d) with \(n\) and \(d\) equal to the number of points and the dimension of this object, respectively. More... | |
| String | formatPoints (int n, int d) |
| Formats a string that displays the same information as returned by toString, together with the first \(d\) coordinates of the first \(n\) points. More... | |
| String | formatPoints (PointSetIterator iter) |
| Same as invoking formatPoints(iter, n, d) with \(n\) and \(d\) equal to the number of points and the dimension, respectively. More... | |
| String | formatPoints (PointSetIterator iter, int n, int d) |
Same as invoking formatPoints(n, d), but prints the points by calling iter repeatedly. More... | |
| String | formatPointsBase (int b) |
| Similar to formatPoints(), but the points coordinates are printed in base \(b\). More... | |
| String | formatPointsBase (int n, int d, int b) |
| Similar to formatPoints(n, d), but the points coordinates are printed in base \(b\). More... | |
| String | formatPointsBase (PointSetIterator iter, int b) |
| Similar to formatPoints(iter), but the points coordinates are printed in base \(b\). More... | |
| String | formatPointsBase (PointSetIterator iter, int n, int d, int b) |
| Similar to formatPoints(iter, n, d), but the points coordinates are printed in base \(b\). More... | |
| String | formatPointsNumbered () |
| Same as invoking formatPointsNumbered(n, d) with \(n\) and \(d\) equal to the number of points and the dimension, respectively. More... | |
| String | formatPointsNumbered (int n, int d) |
| Same as invoking formatPoints(n,d), except that the points are numbered. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from DigitalNet | |
| void | printMat (int N, int[][][] A, String name) |
| void | printMat0 (int[][] A, String name) |
| int | intToDigitsGray (int b, int i, int numDigits, int[] bary, int[] gray) |
| Protected Attributes inherited from DigitalNetBase2 | |
| int [] | genMat |
| int [] | digitalShift |
| Protected Attributes inherited from DigitalNet | |
| int | b = 0 |
| int | numCols = 0 |
| int | numRows = 0 |
| int | outDigits = 0 |
| int [][] | genMat |
| int [][] | digitalShift |
| double | normFactor |
| double [] | factor |
| Protected Attributes inherited from PointSet | |
| double | EpsilonHalf = 1.0 / Num.TWOEXP[55] |
| To avoid 0 for nextCoordinate when random shifting, we add this to each coordinate. | |
| int | dim = 0 |
| Dimension of the points. | |
| int | numPoints = 0 |
| Number of points. | |
| int | dimShift = 0 |
| Current dimension of the shift. More... | |
| int | capacityShift = 0 |
| Number of array elements in the shift vector, always >= dimShift. | |
| double [] | shift |
This is the shift vector as a double[] array, which contains the current random shift in case we apply a random shift modulo 1. More... | |
| RandomStream | shiftStream |
| Stream used to generate the random shifts. More... | |
| Static Protected Attributes inherited from PointSet | |
| static final int | MAXBITS = 31 |
| Since Java has no unsigned type, the 32nd bit cannot be used efficiently, so we have only 31 bits. More... | |
Detailed Description
Class for the construction od digital nets.
The documentation for this class was generated from the following file:
- DigitalNetSearch.java
