This abstract class provides the basic structures for storing and manipulating a point set defined by a set of cycles. More...

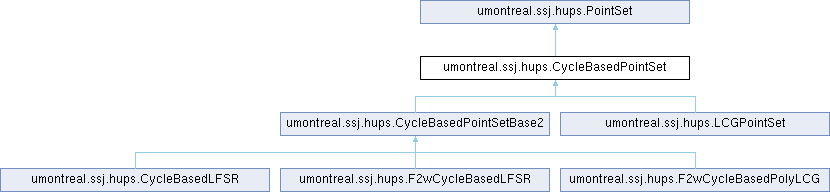

Inheritance diagram for umontreal.ssj.hups.CycleBasedPointSet:

Classes
class	CycleBasedPointSetIterator

Public Member Functions
double	getCoordinate (int i, int j)
	Returns \(u_{i,j}\), the coordinate \(j\) of the point \(i\).
void	addRandomShift (int d1, int d2, RandomStream stream)
	Same as the same method in PointSet.
void	clearRandomShift ()
	Erases the current random shift, if any.
int	getDimension ()
	Returns the dimension (number of available coordinates) of the points.
PointSetIterator	iterator ()
	Constructs and returns a point set iterator.
String	toString ()
	Formats a string that contains information about the point set.
String	formatPoints ()
	Same as invoking `formatPoints(n, d)` with \(n\) and \(d\) equal to the number of points and the dimension of this object, respectively.
Public Member Functions inherited from umontreal.ssj.hups.PointSet
int	getNumPoints ()
	Returns the number of points.
void	randomize (PointSetRandomization rand)
	Randomizes this point set using the given rand.
void	addRandomShift (RandomStream stream)
	Same as `addRandomShift(0, dim, stream)`, where dim is the dimension of the point set.
void	addRandomShift (int d1, int d2)
	Refreshes the random shift (generates new uniform values for the random shift coordinates) for coordinates d1 to d2-1, using the saved shiftStream.
void	addRandomShift ()
	Same as `addRandomShift(0, dim)`, where dim is the dimension of the point set.
String	formatPoints (int n, int d)
	Formats a string that displays the same information as returned by toString, together with the first \(d\) coordinates of the first.
String	formatPoints (PointSetIterator iter)
	Same as invoking `formatPoints(iter, n, d)` with \(n\) and \(d\) equal to the number of points and the dimension, respectively.
String	formatPoints (PointSetIterator iter, int n, int d)
	Same as invoking `formatPoints(n, d)`, but prints the points by calling iter repeatedly.
String	formatPointsBase (int b)
	Similar to `formatPoints()`, but the points coordinates are printed in base \(b\).
String	formatPointsBase (int n, int d, int b)
	Similar to `formatPoints(n, d)`, but the points coordinates are printed in base \(b\).
String	formatPointsBase (PointSetIterator iter, int b)
	Similar to `formatPoints(iter)`, but the points coordinates are printed in base.
String	formatPointsBase (PointSetIterator iter, int n, int d, int b)
	Similar to `formatPoints(iter, n, d)`, but the points coordinates are printed in base \(b\).
String	formatPointsNumbered ()
	Same as invoking `formatPointsNumbered(n, d)` with \(n\) and \(d\) equal to the number of points and the dimension, respectively.
String	formatPointsNumbered (int n, int d)
	Same as invoking `formatPoints(n,d)`, except that the points are numbered.

Protected Member Functions
void	addCycle (AbstractList c)
	Adds the cycle c to the list of all cycles.

Additional Inherited Members
Static Public Member Functions inherited from umontreal.ssj.hups.PointSet
static int	getMaxBits ()
	Returns the maximum number of usable bits.
Protected Attributes inherited from umontreal.ssj.hups.PointSet
double	EpsilonHalf = 1.0 / Num.TWOEXP[55]
	To avoid 0 for nextCoordinate when random shifting, we add this to each coordinate.
int	dim = 0
	Dimension of the points.
int	numPoints = 0
	Number of points.
int	dimShift = 0
	Current dimension of the shift.
int	capacityShift = 0
	Number of array elements in the shift vector, always >= dimShift.
double[]	shift
	This is the shift vector as a double[] array, which contains the current random shift in case we apply a random shift modulo 1.
RandomStream	shiftStream
	Stream used to generate the random shifts.
Static Protected Attributes inherited from umontreal.ssj.hups.PointSet
static final int	MAXBITS = 31
	Since Java has no unsigned type, the 32nd bit cannot be used efficiently, so we have only 31 bits.

Detailed Description

This abstract class provides the basic structures for storing and manipulating a point set defined by a set of cycles.

The \(s\)-dimensional points are all the vectors of \(s\) successive values found in any of the cycles, from any starting point. Since this is defined for any positive integer \(s\), the points effectively have an infinite number of dimensions. The number of points, \(n\), is the sum of lengths of all the cycles. The cycles of the point set are simply stored as a list of arrays, where each array contains the successive values for a given cycle. By default, the values are stored in double.

This structure is convenient for implementing recurrence-based point sets, where the point set in \(s\) dimensions is defined as the set of all vectors of \(s\) successive values of a periodic recurrence, from all its possible initial states.

Definition at line 51 of file CycleBasedPointSet.java.

Member Function Documentation

◆ addCycle()

void umontreal.ssj.hups.CycleBasedPointSet.addCycle ( AbstractList c )

protected

Adds the cycle c to the list of all cycles.

This method is used by subclass constructors to fill up the list of cycles.

Definition at line 115 of file CycleBasedPointSet.java.

◆ addRandomShift()

void umontreal.ssj.hups.CycleBasedPointSet.addRandomShift	(	int	d1,
		int	d2,
		RandomStream	stream )

Same as the same method in PointSet.

Parameters

stream Stream used to generate random numbers

Reimplemented from umontreal.ssj.hups.PointSet.

Reimplemented in umontreal.ssj.hups.CycleBasedPointSetBase2.

Definition at line 79 of file CycleBasedPointSet.java.

◆ clearRandomShift()

void umontreal.ssj.hups.CycleBasedPointSet.clearRandomShift ( )

Erases the current random shift, if any.

Reimplemented from umontreal.ssj.hups.PointSet.

Reimplemented in umontreal.ssj.hups.CycleBasedPointSetBase2.

Definition at line 106 of file CycleBasedPointSet.java.

◆ formatPoints()

String umontreal.ssj.hups.CycleBasedPointSet.formatPoints ( )

Same as invoking formatPoints(n, d) with \(n\) and \(d\) equal to the number of points and the dimension of this object, respectively.

Returns: string representation of all the points in the point set

Exceptions

UnsupportedOperationException if the number of points or dimension of the point set is infinite

Reimplemented from umontreal.ssj.hups.PointSet.

Reimplemented in umontreal.ssj.hups.CycleBasedPointSetBase2.

Definition at line 136 of file CycleBasedPointSet.java.

◆ getCoordinate()

double umontreal.ssj.hups.CycleBasedPointSet.getCoordinate	(	int	i,
		int	j )

Returns \(u_{i,j}\), the coordinate \(j\) of the point \(i\).

When the points are randomized (e.g., a random shift is added), the values returned by this method should incorporate the randomizations. Richard: La méthode getCoordinate de certaines classes ne tient pas compte du random shift, contrairement à l’itérateur de la même classe. Faut-il que toutes les getCoordinate implémentent le random shift quand il existe? Oui.

Parameters

i	index of the point to look for
j	index of the coordinate to look for

Returns: the value of \(u_{i,j}\)

Reimplemented from umontreal.ssj.hups.PointSet.

Reimplemented in umontreal.ssj.hups.CycleBasedPointSetBase2.

Definition at line 59 of file CycleBasedPointSet.java.

◆ getDimension()

int umontreal.ssj.hups.CycleBasedPointSet.getDimension ( )

Returns the dimension (number of available coordinates) of the points.

If the dimension is actually infinite, Integer.MAX_VALUE is returned.

Returns: the dimension of the point set or Integer.MAX_VALUE if it is infinite

Reimplemented from umontreal.ssj.hups.PointSet.

Definition at line 123 of file CycleBasedPointSet.java.

◆ iterator()

PointSetIterator umontreal.ssj.hups.CycleBasedPointSet.iterator ( )

Constructs and returns a point set iterator.

The default implementation returns an iterator that uses the method getCoordinate(i,j) to iterate over the points and coordinates, but subclasses can reimplement it for better efficiency.

Returns: point set iterator for the point set

Reimplemented from umontreal.ssj.hups.PointSet.

Reimplemented in umontreal.ssj.hups.CycleBasedPointSetBase2.

Definition at line 127 of file CycleBasedPointSet.java.

◆ toString()

String umontreal.ssj.hups.CycleBasedPointSet.toString ( )

Formats a string that contains information about the point set.

Returns: string representation of the point set information

Reimplemented from umontreal.ssj.hups.PointSet.

Reimplemented in umontreal.ssj.hups.CycleBasedLFSR, umontreal.ssj.hups.F2wCycleBasedLFSR, umontreal.ssj.hups.F2wCycleBasedPolyLCG, and umontreal.ssj.hups.LCGPointSet.

Definition at line 131 of file CycleBasedPointSet.java.

The documentation for this class was generated from the following file:

src/main/java/umontreal/ssj/hups/CycleBasedPointSet.java
